Photon Ring Observations: Mapping Black Holes With Technology

Photon ring observations could become one of the most powerful ways to study black holes because the ring is produced by light that travels through the extreme gravitational field immediately surrounding a black hole. The Event Horizon Telescope (EHT) has already shown the much broader ring-like emission and central shadow of M87* and Sagittarius A*, while newer observations are revealing how magnetic fields, plasma and jets behave close to their horizons. But the extremely thin photon ring itself remains unresolved in ordinary EHT images. The next major step is therefore technological: larger and more sensitive very-long-baseline interferometers, higher observing frequencies, better polarimetry, faster data systems, improved imaging algorithms and possibly space-ground interferometry such as the proposed Black Hole Explorer (BHEX). As of August 27, 2026, these developments are moving black-hole imaging from producing iconic images toward measuring the geometry of spacetime itself.

Summary

• Subject: Photon rings and the technology used to observe black holes

• Main targets: M87* in the galaxy Messier 87 and Sagittarius A* at the center of the Milky Way

• First black-hole image: M87*, released on April 10, 2019

• Second black-hole image: Sagittarius A*, released on May 12, 2022

• Main observing technique: Very-long-baseline interferometry, or VLBI

• Important distinction: The bright ring in EHT images is not simply a fully resolved photon ring; the narrow photon-ring substructure is substantially harder to detect

• Why photon rings matter: Their size, shape and interferometric signatures can encode information about black-hole mass, spin and spacetime geometry

• Current technology: EHT, higher-frequency VLBI, improved receivers, additional stations, polarization measurements and advanced imaging

• Next-generation ground array: ngEHT, designed to provide sharper images and movies of black holes

• Major space concept: Black Hole Explorer (BHEX), designed specifically to resolve photon rings with space-ground VLBI

• Latest 2026 development: Construction of the Africa Millimetre Telescope in Namibia has been announced as a new African node for the EHT network

• Research status as of August 27, 2026: Photon rings remain a major future observational target rather than something routinely resolved in existing EHT images.

What Is a Photon Ring?

A photon ring is an extremely narrow structure predicted by general relativity to appear in images of a black hole under suitable conditions.

It forms because light passing close to a black hole can be bent through enormous angles by gravity. Some photons can travel around the black hole before escaping toward an observer. Other photons can make more complicated paths, producing a hierarchy of increasingly narrow and highly lensed structures.

The important point is that these rings are not material objects floating around a black hole. They are patterns created by light propagation through curved spacetime.

Theoretically, black-hole images can contain a sequence of increasingly narrow subrings. Photons associated with higher-order rings spend more time orbiting near the unstable photon region before escaping. The rings become increasingly difficult to observe because they become narrower and fainter.

This makes the photon ring fundamentally different from an ordinary glowing disk.

The disk or surrounding plasma depends heavily on astrophysical conditions such as temperature, density, magnetic fields and particle motion. The photon-ring structure, by contrast, is strongly connected to the geometry of spacetime itself. That is why researchers are interested in using it as a precision probe of gravity.

Photon Ring vs Black Hole Shadow

These terms are often mixed together, but they are not identical.

The black hole shadow is the dark central region produced because light from behind or around the black hole is captured or strongly redirected. The photon ring is a much thinner, higher-order lensed structure associated with photons that closely follow unstable trajectories around the black hole.

The famous images released by the EHT show a bright ring-like emission structure around a central depression. That observed feature is connected to the black-hole shadow, but it should not automatically be described as a direct, fully resolved image of the theoretical photon ring.

This distinction is one of the most important facts in modern black-hole imaging.

The EHT itself explains that it observes radiation from material surrounding black holes rather than light emitted by the event horizon. The gas around the black hole radiates, and its appearance is strongly shaped by gravity.

So when people see the famous orange image of M87*, they are seeing radiation from the black hole's environment, transformed by extreme gravitational lensing.

How Gravity Creates the Photon Ring

Einstein's general theory of relativity says that massive objects curve spacetime. A black hole creates such an intense gravitational field that light traveling nearby can follow dramatically curved paths.

Near a non-rotating black hole, there is a characteristic region where photons can orbit on unstable trajectories. For rotating black holes, the situation is more complicated because spacetime itself is affected by the black hole's angular momentum.

A photon can approach the black hole, turn around through gravitational lensing and escape. Another photon can pass even closer, loop around the black hole more than once and then escape. These different paths contribute different lensed images.

The resulting hierarchy is what gives photon rings their remarkable structure.

Theoretical studies show that the diameter and other properties of these rings can be much more closely tied to spacetime geometry than the broader emission region is. This potentially makes photon rings valuable for testing whether astrophysical black holes follow the predictions of the Kerr solution of general relativity.

The Event Horizon Telescope Changed Black-Hole Astronomy

The modern story begins with the Event Horizon Telescope.

On April 10, 2019, the EHT collaboration released the first image of a black hole, M87*, at the center of the giant galaxy Messier 87. The black hole is about 55 million light-years from Earth and was estimated from the EHT work to have a mass of roughly 6.5 billion Suns.

The EHT did not rely on one telescope.

Instead, radio observatories around the world were combined using very-long-baseline interferometry. The telescopes recorded radio waves with precisely synchronized timing, and the resulting data were later correlated and processed as though they came from an enormous Earth-sized instrument.

The achievement was enormous because the target is incredibly small on the sky.

The EHT effectively turned the entire planet into part of a telescope designed to study structures on scales comparable to the black hole's immediate environment.

Sagittarius A*: The Milky Way's Black Hole

The second great milestone arrived on May 12, 2022, when the EHT collaboration revealed the first image of Sagittarius A*, the supermassive black hole at the center of the Milky Way.

Sgr A* is about 27,000 light-years away and has a mass roughly four million times that of the Sun. Despite being much smaller than M87*, it produced a remarkably similar ring-and-shadow appearance.

Sgr A* is particularly valuable because it gives scientists a nearby supermassive black hole to study.

There is also a major complication.

Sgr A* changes rapidly because its surrounding gas moves on much shorter timescales than the gas around M87*. The EHT therefore has to deal with a source that can evolve while observations are being made.

That makes better time resolution and improved imaging technology especially important.

What the EHT Has Already Learned

The EHT's science has progressed well beyond the original photographs.

In 2024, observations of M87* from 2018 produced another ring with essentially the same size as the one seen in 2017. The brightness peak shifted by roughly 30 degrees, something consistent with changing turbulent plasma rather than a dramatic change in the underlying black-hole geometry.

This was important because it showed that researchers were not simply looking at one unusual snapshot.

The structure persisted.

In September 2025, the EHT released multi-year polarization results for M87*, comparing observations from 2017, 2018 and 2021. The ring size remained consistent, while the polarization structure changed significantly, indicating that the magnetized plasma around the black hole is dynamic. The 2021 observations also included Kitt Peak and NOEMA, improving sensitivity and enabling constraints on emission associated with the base of M87's jet.

Those observations illustrate why photon-ring research needs more than a sharper photograph.

Scientists want to separate several effects:

The underlying spacetime
The geometry around the black hole.

The emitting plasma
Hot gas and magnetic fields producing the observed radiation.

The black hole's spin
Angular momentum changes how matter and light behave.

Relativistic jets
Powerful outflows launched from the immediate black-hole environment.

Propagation effects
Interstellar scattering, especially important for Sgr A*.

Better instruments must disentangle all of these effects.

Polarized Light Adds Another Dimension

Ordinary intensity images show where the radio emission is bright and faint.

Polarization reveals additional information about the magnetic-field structure.

In March 2021, the EHT released the first polarized image around M87*. The observations showed an organized polarization pattern around the ring, consistent with strong magnetic fields near the black hole.

In March 2024, the EHT released polarized observations of Sgr A*, showing an organized magnetic-field structure that had similarities to what was seen around M87*. Researchers said the result also strengthened interest in the possibility of a hidden jet associated with Sgr A*.

Polarization could become especially useful for photon-ring research.

Theoretical work suggests that the strongly lensed photon-ring component has characteristic polarization symmetries. Future 345 GHz observations might be able to exploit polarization reversals and long-baseline measurements to improve the chances of identifying the photon ring of Sgr A*.

Why Existing Telescopes Cannot Simply Photograph the Photon Ring

This is where technology becomes the central issue.

The photon ring is extraordinarily narrow.

A telescope's angular resolution depends heavily on its effective baseline and observing wavelength. The EHT already achieves extraordinary resolution, but researchers have concluded that the existing observations did not have enough angular resolution and sensitivity to reliably resolve the photon ring in the straightforward sense required for a clean detection.

There is another problem: a real black-hole image is not a simple geometric circle.

It contains turbulent plasma, changing brightness, magnetic fields and overlapping lensed structures.

That means an algorithm can sometimes produce a ring-shaped feature even when a true photon-ring measurement has not been independently established. Researchers have specifically warned that hybrid imaging techniques can generate false positives and that a fitted ring does not automatically correspond to the theoretical photon ring.

This is why future detections will need strong statistical and physical validation.

The Technology Behind Photon Ring Observations

Very-Long-Baseline Interferometry

VLBI is the foundation.

Multiple radio telescopes separated by thousands of kilometres simultaneously observe the same source. Their signals are time-stamped with highly precise clocks and combined later.

The effective resolution is related to the separation between telescopes rather than the diameter of one individual dish.

The EHT therefore achieves Earth-scale resolution without constructing a single telescope the size of Earth.

Higher Observing Frequencies

The EHT has primarily worked around millimetre wavelengths, with 230 GHz observations playing a central role.

Higher frequencies can potentially provide better angular resolution because the observing wavelength becomes shorter.

At the same time, higher frequencies create their own technical challenges.

Receivers become more demanding, atmospheric conditions matter greatly and sensitivity can become a limiting factor.

Researchers studying future photon-ring detections have examined observations at 230 GHz and 345 GHz, with 345 GHz particularly interesting for reducing the impact of interstellar scattering toward Sgr A*.

More Telescope Stations

Adding stations fills gaps in the interferometric measurements.

The next-generation EHT, or ngEHT, is being developed to expand the geographical footprint of the array, with roughly ten additional dishes envisioned. It also aims to modernize receivers, electronics and data-transfer systems.

A larger array does not simply mean "more pictures."

It means more independent measurements of the source's spatial structure.

That can make images sharper, improve dynamic range, improve calibration and increase confidence in subtle structures.

Faster Data Systems

The amount of information generated by a global interferometer is enormous.

The ngEHT concept therefore includes modern high-speed data transmission and upgraded electronics to handle larger data volumes and support faster processing. Its goal is not only better still images but also time-lapse observations and movies of black holes.

That could transform black-hole astronomy.

Instead of examining a single reconstructed image, scientists could watch structures evolve.

The Next-Generation Event Horizon Telescope

The ngEHT is designed as a major expansion of the original EHT.

According to the project, the upgraded array will roughly double the number of antennas and add new observing capabilities. The project also aims to reveal details that are much fainter than those accessible with the original array.

One of its major goals is to produce movies.

This is especially important for Sgr A*, where the surrounding emission can change quickly.

A future movie might show:

• changes in the accretion flow

• motion of bright plasma features

• evolving magnetic structures

• changes in the base of relativistic jets

• short-timescale variability near the horizon

The scientific value could be enormous because the timing information becomes an additional observational dimension.

The Black Hole Explorer: Taking VLBI Into Space

The most ambitious photon-ring technology now being developed is the Black Hole Explorer, or BHEX.

BHEX is designed to place a radio telescope in space and combine it with ground-based observatories. This would extend the interferometric baseline beyond Earth itself.

The BHEX team says the mission is specifically designed to detect and measure the sharp photon ring around supermassive black holes and use its properties to study black-hole mass and spin.

The mission concept proposes observations over roughly 100–300 GHz and an orbit around tens of thousands of kilometres from Earth. The combination of a space antenna with ground telescopes could produce the very long baselines needed to separate extremely fine structures.

BHEX is particularly exciting because researchers expect the photon ring to reveal relatively clean signatures of spacetime geometry.

However, it is important not to exaggerate the current status.

As of August 27, 2026, BHEX remains a mission proposal and development effort rather than an already-launched observatory. Its current project site says the team plans to propose BHEX as a NASA Small Explorer mission in 2026, with a target launch in 2031.

That distinction matters.

Current and Future Photon-Ring Technology

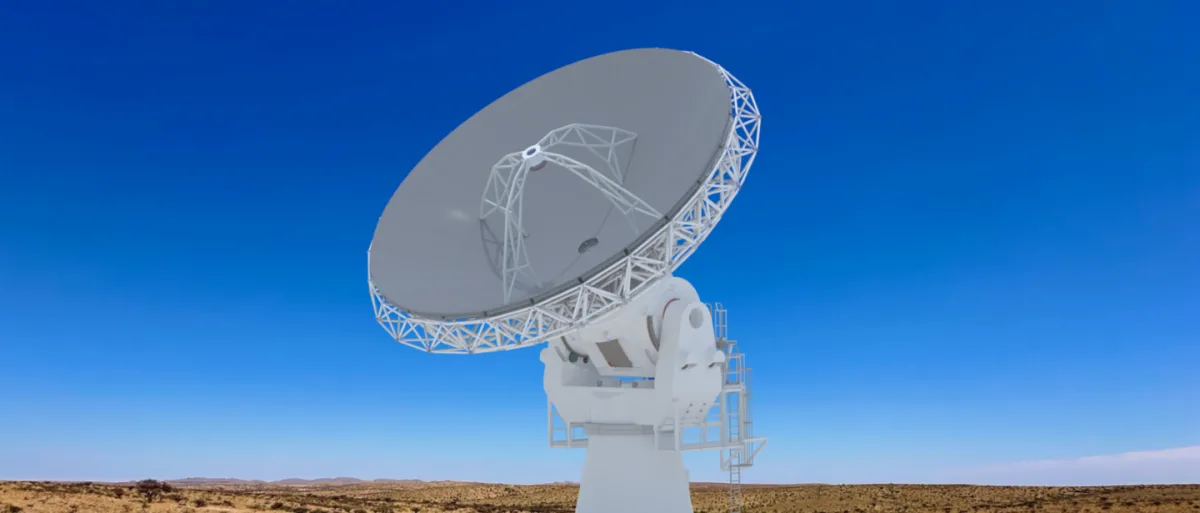

The 2026 announcement of the Africa Millimetre Telescope (AMT) is particularly significant for the global VLBI network. The project in Namibia is described by the EHT as the first African node of the network and is intended to fill an important geographical gap while improving sensitivity to rapid motions around black holes.

For African astronomy, this is a major development as well as an important technological investment.

Why Africa Matters to Black-Hole Imaging

Interferometry depends on geography.

Every additional telescope changes the pattern of baselines available to the network.

A telescope in Namibia can provide measurements across a part of the Earth that is strategically valuable to the EHT's global geometry.

The AMT therefore contributes more than another dish.

It can improve the overall interferometric picture by changing the baseline coverage and increasing the network's sensitivity to structure and variability. The project has been described as an important addition for observing rapid motions and flaring radio sources.

This is one example of how the future of black-hole astronomy depends on international infrastructure rather than a single country's telescope.

What Scientists Could Learn From a Photon Ring

Measuring Black-Hole Spin

A spinning black hole is described by the Kerr solution in general relativity.

Its angular momentum affects the spacetime around it.

The shape and structure of the photon ring can therefore contain information about spin. BHEX's stated science goals include using photon-ring measurements to constrain the masses and spins of supermassive black holes.

This could be an important advance because measuring spin from surrounding astrophysical material can be complicated by uncertainties in the accretion model.

Testing Einstein's General Relativity

The photon ring is attractive as a test of gravity because its structure is closely related to photon trajectories determined by spacetime geometry.

Researchers have proposed using ring shape, scaling relations and other interferometric observables to compare astrophysical black holes against the Kerr predictions of general relativity.

Future observations could therefore ask a fundamental question:

Does nature produce the black-hole geometry predicted by Einstein's theory under extreme conditions?

Testing Alternative Gravity Theories

Some theoretical models predict different photon-ring properties.

Scientists have studied how deviations from standard Kerr geometry could change the ring's shape, size or spacing.

Work published in 2026 continues to explore how photon-ring structures could distinguish ordinary black holes from alternative compact objects and different gravitational models.

These studies do not mean that alternative black holes have been discovered.

They show what future observations could potentially test.

Studying Black-Hole Environments

Photon rings do not exist in isolation from astrophysics.

The surrounding plasma still matters because it supplies the photons being lensed.

That means observations can simultaneously probe gravity and the physics of the accretion environment.

Recent EHT observations of M87*, for example, have shown changes in polarization while the ring size remained stable, highlighting the difference between relatively persistent gravitational geometry and rapidly changing plasma conditions.

The Special Challenge of Sagittarius A*

Sgr A* presents a fascinating paradox.

It is close enough to be an excellent target, but its environment changes very quickly.

This makes it difficult to create one simple static image that perfectly represents the black hole.

Researchers therefore need better algorithms that can reconstruct evolving sources rather than assuming the object is completely stationary.

The proposed use of polarization at 345 GHz is one example of how scientists are designing observations specifically around the physical challenges of Sgr A*.

A successful photon-ring detection around Sgr A* would be especially valuable because the target is relatively nearby compared with distant active galaxies.

M87* Remains a Major Laboratory

M87* is also exceptionally important.

Its immense mass means its characteristic horizon-scale structures are large enough, in angular terms, to be among the most accessible targets for Earth-based horizon-scale interferometry.

Unlike Sgr A*, however, its surrounding environment evolves more slowly.

That makes M87* useful for long-term comparisons.

The 2017, 2018 and 2021 observations demonstrate the scientific value of repeatedly observing the same object. The geometry remains comparatively stable while the surrounding plasma and magnetic structures evolve.

This separation between stable and changing components is exactly what future photon-ring measurements need to exploit.

The Importance of Interferometric Data

A traditional photograph records brightness directly across an image.

VLBI works differently.

Astronomers first measure correlations between radio signals arriving at separate telescopes. These measurements sample the source's structure in the Fourier domain.

The scientific challenge is then to recover an image—or directly infer physical parameters—from incomplete and noisy measurements.

For photon rings, this is crucial because the ring can leave distinctive signatures in the visibility data even when a conventional image cannot clearly show a thin ring. Research has shown that photon-ring substructure can produce characteristic long-baseline interferometric signatures.

This means the future of photon-ring astronomy may not depend entirely on producing a visually obvious circle.

Researchers can also look for the mathematical fingerprint of the ring in the raw interferometric measurements.

Why Imaging Algorithms Matter

The hardware is only half the story.

Once telescopes collect the data, scientists have to calibrate, correlate, reconstruct and interpret it.

Different algorithms can make different assumptions about the source.

The EHT has therefore used multiple independent imaging and modeling techniques. Its M87* analyses have included several approaches that were compared against simulated observations.

This redundancy matters because a feature is much more convincing when independent methods recover it.

For future photon-ring searches, scientists must be particularly careful because a flexible reconstruction can accidentally produce a ring-like artifact.

That is why direct visibility-domain evidence and physically motivated models are so important.

Photon Rings and the Search for Dark Matter

The scientific possibilities extend even further.

Because higher-order photon rings are controlled by gravitational lensing near the black hole, they could potentially be sensitive to additional matter or environmental effects around the central object.

A study published in August 2026 explored the possibility of using higher-order photon rings and closure data from multi-frequency VLBI to constrain dark-matter halos surrounding supermassive black holes.

This remains theoretical rather than an observational discovery.

But it shows how the photon ring could become more than a test of the black hole itself.

It could eventually become a precision probe of the environment surrounding a black hole.

Latest Black-Hole Imaging Developments in 2026

The technology has continued to advance during 2026.

In January 2026, EHT observations of M87 provided new information about radio emission on scales comparable to the black hole, helping researchers localize the likely base of the galaxy's central outflow.

Also in January 2026, EHT observations of OJ 287 revealed spatially resolved structures in a supermassive black-hole jet, including shock-wave interactions and changing polarization behavior.

Then in March 2026, the EHT announced the construction agreement for the Africa Millimetre Telescope in Namibia, marking a major expansion of global infrastructure for black-hole observations.

These are not direct photon-ring detections.

They are part of the larger technological progression needed to eventually make such detections more reliable.

Current Projects and Their Status

The EHT's public data records also show continuing releases of calibrated observations, including 2018 and 2021 polarimetric data updated in June 2026.

Highlights of Photon-Ring Astronomy

Why Photon Ring Observations Matter

The greatest promise of photon-ring astronomy is that it could shift black-hole research from seeing a shadow to measuring spacetime geometry.

The first EHT images were revolutionary because they demonstrated that humanity could observe the immediate environment of a black hole.

Photon-ring measurements could go one step further.

They could potentially allow astronomers to test:

• how fast a black hole spins

• whether its geometry matches Kerr predictions

• whether general relativity holds in the strongest gravitational fields

• how magnetic fields interact with accretion flows

• how relativistic jets are launched

• how plasma behaves only a few gravitational radii from the black hole

• whether subtle deviations from standard gravity exist

The field is therefore moving from visual astronomy toward precision gravitational astronomy.

The Limits We Still Face

There is a temptation to describe photon-ring imaging as though the technology has already solved the problem.

It has not.

The major challenges include limited sensitivity, atmospheric distortion, sparse interferometric coverage, rapidly varying sources, interstellar scattering, complex plasma physics and the difficulty of distinguishing genuine structures from reconstruction artifacts.

The 2022 ngEHT photon-ring study explicitly found that earlier EHT observations did not have sufficient resolution and sensitivity for a straightforward photon-ring detection, while also warning that some hybrid imaging approaches can produce false positives.

That scientific caution is important.

The absence of a direct resolved photon ring today does not mean the prediction is wrong.

It means the observational problem is extraordinarily demanding.

References

Event Horizon Telescope Collaboration — First image of M87*
Event Horizon Telescope: First Black Hole Image, April 10, 2019

Event Horizon Telescope — First image of Sagittarius A*
EHT: First Image of the Black Hole at the Heart of Our Galaxy

Event Horizon Telescope — M87* 2018 observations
EHT: Proof of a Persistent Black Hole Shadow

Event Horizon Telescope — M87* polarization and 2025 observations
EHT: New Images Reveal Unexpected Polarization Flips at M87*

Event Horizon Telescope — 2024 Sgr A* polarization
EHT: Strong Magnetic Fields at Sagittarius A*

Event Horizon Telescope — 2026 Africa Millimetre Telescope
EHT: Africa Millimetre Telescope to Bring Black Holes Into Sharper Focus

Event Horizon Telescope — 2026 M87* jet-base observations
EHT: Probing the Jet Base of M87's Supermassive Black Hole

Event Horizon Telescope — 2026 OJ 287 observations
EHT: Mapping Twisting Magnetic Fields Near OJ 287

National Science Foundation — Event Horizon Telescope
NSF: Event Horizon Telescope overview and black-hole resources

ngEHT — Concept
ngEHT: The Next Generation Event Horizon Telescope

ngEHT — Technology
ngEHT: Technology Behind Future Black-Hole Images and Movies

Black Hole Explorer — Mission concept
Black Hole Explorer: Official Mission Website

Lupsasca et al. — Black Hole Explorer photon-ring science
The Black Hole Explorer: Photon Ring Science, Detection and Shape Measurement

Tiede et al. — Measuring Photon Rings with the ngEHT
Measuring Photon Rings with the ngEHT

Wielgus — Photon Rings of Spherically Symmetric Black Holes
Photon Rings and Tests of Non-Kerr Metrics

Nature Astronomy — Future tests of gravity with black-hole shadows
The Future Ability to Test Theories of Gravity With Black-Hole Shadows
